HYDRAULIC ROAD BLOCKER

Hydraulic Road Blocker

Nowadays, people are paying more and more attention to security issues. From the protection of information privacy and the safety of company personnel’s personal property, all major companies have all noticed the importance of security issues.Road Blocker is one of them better high security working at your Premises.Road blocker equipment is mainly composed of the roadblock machines, hydraulic transmission stations, electric control parts, totally three parts.

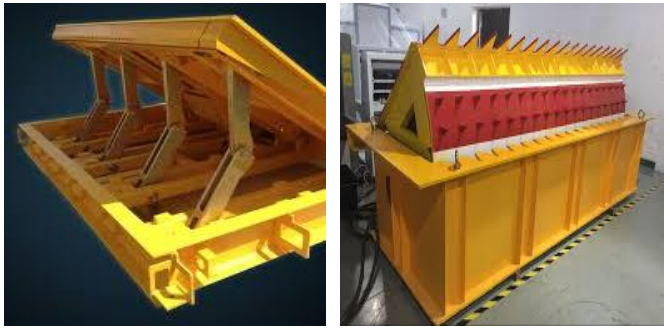

 The road blocker machine is mainly composed of turn swivel or lifting body, the housing base(anti-collision spike can be added according to the client’s requirement).

Hydraulic system structure of road blocker & frame will be fabricated high quality material MS 4-6-8 mm sheet and internal box material 3inch “C” Chanel extra heavy gage welded together, which has a high strength of bearing load and anti-collision. There is no electrical appliances and line setup inside the base housing. It is very safe. The device is embedded in the driveway or the specified location of the gate.

 The personnel on duty will control the hydraulic road blocker to limit vehicle access.

hyraulic

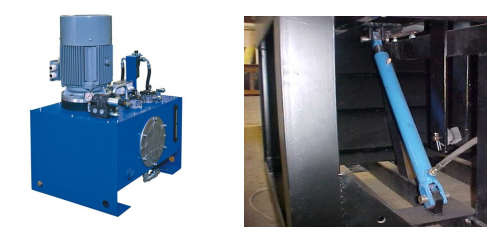

  • Hydraulic Transmission Station:

Hydraulic station composed of the oil tank, the manual oil pump, a full range of hydraulic solenoid valve group, the high power motor, oil pump, oil cylinder, oil gauge, high-pressure hydraulic oil pipe and so on. It is the power source of a full set of road blocker system. The station is installed at the side of the hydraulic road blocker and works together with the road blocker (Can adjust the up and down speed through control valve). When power failure, you can manually drop the blocker down and rise the blocker up.

  • Electronic Control System:

Automatic electronic control system parts: PLC control board, leakage switch, no exposure to noise high life contactor and other precise time-starting devices (prevent the impact of the oil cylinder in place after movement and increase the service life of it)

Automatic controller: control box, remote controller, manual button. Those are controlled by the personnel on duty


  • Multiple Safety Protection:

Hydrulic road blocker safety protection become very important to avoid possible accidents

This cannot be neglected when using such high performance. There are three safety protection devices.


  • Safety photo sensor :

The sensor can send a infrared light beam from one side to another. When it is blocked by passing human or vehicles, the blocker will immediately stop or get down. Thus it aims to avoid accident.


  • Arrow Crouse Light :

Arrow Crouse light indicate Blocker position


  • Various Operation Methods:

Every hydrulic road blocker will have control buttons. we also offer various additional choices of operation devices.


  • Remote Control :

Each can have two or more remote control units. People can open or close the blocker from as far as 100m distance.


  • Vehicles Radar Sensor :

It can detect vehicles moving towards the blocker will open automatically. After passing through, the Blocker will close automatically within several seconds which can set.

hydraulic road blocker
