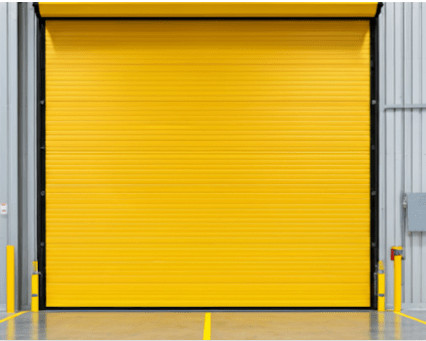

HIGH SPEED ROLL/FOLD UP DOOR

A High Speed Roll / Fold Up Door is the perfect solution for industries that demand speed, efficiency, and safety. The door system functions through quick opening and closing operations, which make it a popular choice for warehouses, factories, and logistics centers because these locations need rapid door operations during their daily operations.

The system allows quick transportation of goods and vehicles, which leads to better workflow and decreased downtime. The door system provides more than speed because it limits air flow and heat transfer. This results in stable temperatures and clean conditions inside the facility.

The product meets the requirements for food processing operations and pharmaceutical manufacturing, and cleanroom environments. The product delivers excellent durability and performance because it combines PVC fabric with modern engineering methods.

High Frequency Working

The motor is frequency motor, and control panel is frequency inverter system. It can change work power output gently.
So the door can start and stop in a soft process. Its running speed will accelerate or decelerate gradually.
This can avoid overriding and over-heating caused by constant up and down So the door can keep running and no need worry its motor burnt or structure damaged.

Our door can run up to 2000 times per day. This is why it is a best choice for busy area with heavy traffic like forklifts or passing workers.

Various Colors

We supply six different colors for your choice. You can make a free selection among them. Our doors can integrate into your whole building design and make the building harmony and beautiful.

Blue, Yellow, Orange, Grey, Green Full clear

A transparent window can be made at human eye height. This makes it easy to see what is happening at another side of the door.
It will be more safe for a busy area with moving workers and forklifts or other vehicles.

Multiple Safety Protection

Considering the high speed running of the High Speed Roll door, safety protection becomes very important to avoid possible accidents. This cannot be neglected when using such high-performance doors. There are three safety protection devices:

Safety Photo Sensor

The sensor can send a infrared light beam from one side to another. When it is blocked by passing human or vehicles, the door will immediately stop or get up. Thus it aims to avoid accident.

Safety Airbag Sensor

It is a soft rubber airbag at the bottom. If something touches the bottom, the door will get up. So it aims to stop accident once it happens.

Alarm Lamp

It gives out light flash signal or sound signal when the door running. Passing workers or vehicles can easily get aware that the door is working and take special care to avoid accidents

Interlocking Function

In some industries like food, pharmaceutical or electronics, it is a very important issue to keep hygiene and clean inside the room.
This is critical to keep final quality level of the finished products, no matter it is food, medicine or electronic appliances.
How to prevent outside air and dust is a major difficulty. A interlocking passage system can solve this problem perfect.

Door A and Door B are installed at two ends of the passage. When door A opens, Door B will never open. Only after Door A closed, Door B can open. Thus at any time, there is at least one door keep closed. So the outside air and dust will never be able to enter the room.

We have input the interlocking function in every door. When necessary, any two doors can be interlocked.

Various Operation Methods

Every door will have wall mounted control buttons at both interior and exterior. This can make sure the door can be operated by workers at any time when they need.
To improve your work efficiency, we also offer various additional choices of operation devices.

– Remote Control :
Each door can have two or more remote control units. People can open or close the door from as far as 100m distance;

– Radar Sensor :
It can detect human or vehicles moving towards the door and the door will open automatically. After passing through, the door will close automatically within several seconds which can set.

– Vehicle Loop Detector :
It detecting wire loop will be embedded into ground floor near the door. It can detect all the big metal objects passing on its loop like forklifts. It does not detect humans. Thus such sensor is quite fit for doors which only allow forklifts passing automatically.

– Pull-cord Switch :
This is very convenient for forklift drivers, and also can avoid unnecessary opening of the doors compared with radar sensors or vehicle detector;”

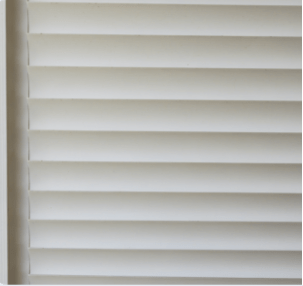

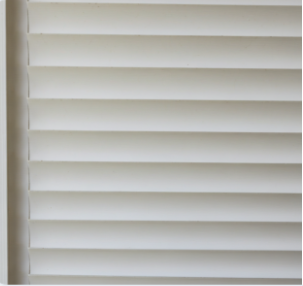

Heavy Duty Wind Resistance

Strong solid aluminum bar is used as wind bar to support door curtain. Even there is big pressure on the door curtain it will not get out of side rail easily like regular fabric doors. Thus the door can resist big wind pressure.

Technical Data

Applicable location:

Max dimension:

Max opening Speed:

Power supply:

Protection level of electric:

Fabric curtain:

Frame material:

Wind bar:

Both interior and exterior

5000mm wide*6000mm high

4, 5, 6 sec as per requirement

3 Phase 50/60HZ

IP 55
Available colors of fabric: Yellow, Blue, Red, Grey, Clear, Color ful

PVC Fabric

Powder coated galvanized steel

Aluminum alloy material, surface is powder coated
