ALUMINUM ALLOY HIGH SPEED DOOR

Technical data：

Max dimension ：width * height 8000mm*8000mm Normal speed ：open1.2m/s close 0.6m/s Max speed ：open 2.0m/s close 1.0m/s Opening frequency ：1000 times /day Wind resistance ：35m/s (Class 12) Detail structure：

1. Motor

Italy servo technology motor. Power supply 220 ± 10%V, 50/60Hz. Output power 0.75-1.5KW; Work temperature: -30-60 degree Celsius. With more accurate limitingand much longer work life than traditional brake motor.

2. Control system

Italy servo technology control system. With more accurate controlling of motor running than traditional encoder control. And Human-Machine Interface display is equipped, to make the daily operation and setting much easier and friendly. There is Fault Self-checking program and shows error codes when there is fault.

3. Metal structure

It includes two guide rails, and one top frame.Material of top frame and guide rail cover: Galvanized steel, surface is painted; Material of inner guide rail: Aluminum alloy rail

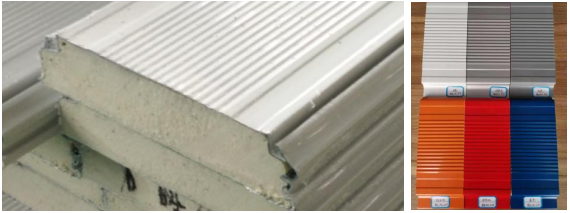

1. Slats:

43mm thick double layer hollow aluminum alloy, Single layer Aluminum Alloy 0.7mm thickness, filled with insulation material-PU foam. With good thermal insulation and sound insulation. Surface is painted. Five colors are available for choice: Dark Grey RAL 7045,Orange RAL2008, White RAL9003, Blue RAL 5010, and Aluminum color RAL9006,Red RAL 3028.

2. Safety performance

A. Photo cells or safety light curtain

B. Proximity sensor, at the bottom

3. Standard operation method

Control buttons of both sides

4. Optional operation methods

One-side radar/ Remote control(2 control panels) / One-side vehicle detector /Oneside pull switch /; Interlocking(free of charge

5. Opening speed

Adjustable between 1.0m/s and 2.0m/s

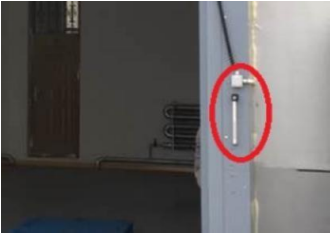

6. Emergency opening

Manual release brake available to open the door in emergency case of power failure
